Ontzander

Dutch

Karakteristiek:

Model MD 450 D
Capacity ( m³/h ) 240+240
Capacity double cycloning ( m³/h ) 240
Installed power ( KW / V / Hz ) 51/380/50
Tank capacity ( m³ / M³ ) 5.30
Primary sieve ( mm / MM ) 1500x2600xØ2÷4
Secundary sieve ( mm / MM ) 1500x2400x0.3÷0.8
Hydrocyclons diameter ( mm / MM )

2 x Ø250-290

10 x Ø100-160

Mud density ( gr/cm³ / rp/cm³ ) 1.15

Combined cut point ( D50 µm )

Simple cycloning

Double cycloning



40(*)

30(*)

Desilter cut point * ( D50 µm ) 15(*)
Sand content befote treatment ( % ) 8÷10
Sand content alter treatment ( % ) <1.5
Dimensions ( AxBxC - mm / MM ) 5160x2200x2700
Weight ( Kg / KR ) 5400

* Variable upon mud density

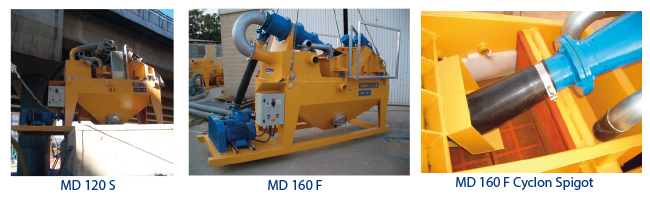

MD 120 S / MD 160 F
