Holle spiraalboren grote diameter
| |
BUITEN ø mm |
350 mm |
450 mm |
| |
BUITEN ø mm |
13 3/4 inch |
17 3/4 inch |
| |
|
Auger I.D. (inches) |

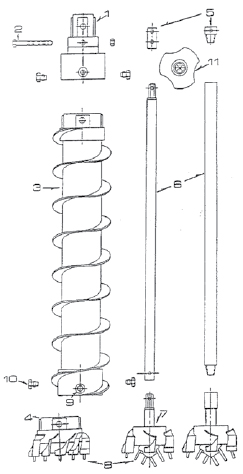

| N° |
Binnen ø |
9 1/4 (235) |
12 1/4 (311) |
| 1 |
Double Adaptateur Cap - 2’’ hex |
Q-461 |
N/A |
| Double Adaptateur Cap - 6’’ DDI Pin |
Q-461P |
Q421 |
| 2 |
Nut and Bolt - 2’’ Hex |
Q-116 |
N/A |
| Nut and Bolt - 6’’ DDI pin |
Q-138 |
Q-138 |
| 3 |
Hollow Stem Auger 5ft |
Q-460 |
Q-420 |
| 4 |
Hollow Stem Auger Head/Finger Type Bit |
Q-462 |
Q-422 |
| 5 |
NWJ Rod to CAp Adapter |
Q-156NW |
N/A |
| 1 5/8’’ Hex Rod to CAp Adapter |
Q-466 |
N/A |
| NW Rod to CAp Adapter |
Q-122 |
N/A |
| 6 |
NWJ Drill Rod 5 ft |
A-62 |
N/A |
| 1 5/8’’ Hex Rod |
Q-429 |
Q-429 |
| NW Drill Rod 5ft |
A-23 |
N/A |
| 7 |
NWJ pilot assembly |
Q-464NWJ |
N/A |
| 1 5/8’’ Hex Pilot Assembly |
Q-464 |
Q-425 |
| NW Pilot AAssembly |
Q-464NW |
N/A |
| 8 |
Finger Bit |
Q-114 |
Q-114 |
| 9 |
Bushings |
Q-428 |
Q-428 |
| 10 |
Bolt |
Q-427 |
Q-427 |
| 11 |
Centering Plate |
Q-468 |
Q-430 |
| |
Auger Holder |
Q-463 |
Q-424 |
| |
Auger Chain Sling |
Q-157 |
Q-157 |
| |
Stell Knockout Plate |
Q-758 |
Q-757 |
| |
O ring |
Q-469 |
N/A |
