Ontzander

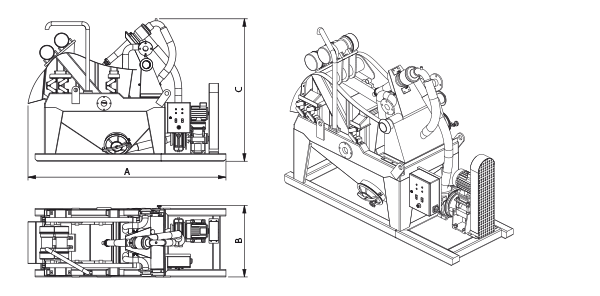

Karakteristiek:
| Model |
MD 25 |
| Capacity (m³/h) |
20 - 25 |
| Installed power (KW / V / Hz) |
5.1 / 380 / 50 |
| Primary sieve (mm) |
540x1000xØ2÷4 |
| Secundary sieve (mm) |
540x900x0.3÷0.8 |
| Hydrocyclon (mm) |
Ø100-160 |
| Mud density (gr/cm³) |
1.15 |
| Cut point * (D50 µm) |
20 |
| Sand content before treatment (%) |
8÷10 |
| Sand content after treatment (%) |
<1.5 |
| Dimension (AxBxC - mm) |
2600X950X1870 |
| Weight (Kg) |
970 |
* Variable upon mud density

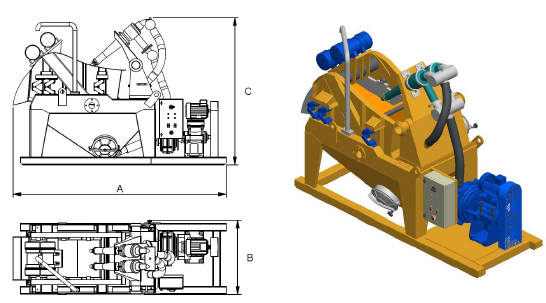

Karakteristiek:
| Model |
MD 25 |
| Capacity (m³/h) |
40 - 45 |
| Installed power (KW / V / Hz) |
5.9 / 380 / 50 |
| Primary sieve (mm) |
540x1300xØ2÷4 |
| Secundary sieve (mm) |
540x1200x0.3÷0.8 |
| Hydrocyclon (mm) |
2x Ø100-160 |
| Mud density (gr/cm³) |
1.15 |
| Cut point * (D50 µm) |
20 |
| Sand content before treatment (%) |
8÷10 |
| Sand content after treatment (%) |
<1.5 |
| Dimension (AxBxC - mm) |
2900X1150X1870 |
| Weight (Kg) |
1200 |
* Variable upon mud density

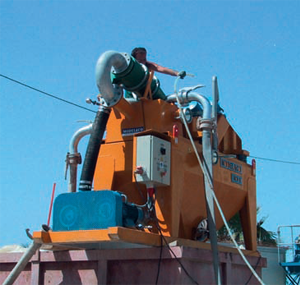

Karakteristiek:
| Model |
MD 60 |
| Capacity ( m³/h \ M³/4 ) |
60 |
| Installed Power ( KW / V / Hz ) |
15 / 380 / 50 |
| Tank capacity ( m³ / M³ ) |
1.51 |
| Primary sieve ( mm / MM ) |
540x1600xØ2÷4 |
| Secundary sieve ( mm / MM ) |
540x1200x0.3÷0.8 |
| Hydrocyclon ( mm / MM ) |
Ø250-290 |
| Mud density ( gr/cm³ / rp/cm³ ) |
1.15 |
| Cut point ( D50 µm ) |
40 ( * ) |
| Sand content befote treatment ( % ) |
8÷10 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm / MM ) |
3800X1350X2450 |
| Weight ( Kg / KR ) |
2000 |
* Variable upon mud density

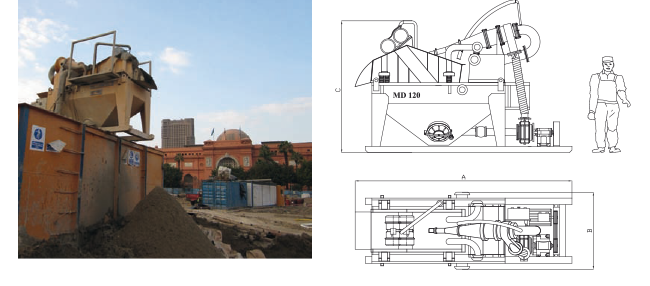

Karakteristiek:
| Model |
MD 120 |
| Capacity ( m³/h \ M³/4 ) |
120 |
| Installed Power ( KW / V / Hz ) |
23 / 380 / 50 |
| Tank capacity ( m³ / M³ ) |
2.00 |
| Primary sieve ( mm / MM ) |
680x1600xØ2÷4 |
| Secundary sieve ( mm / MM ) |
680x1200x0.3÷0.8 |
| Hydrocyclon ( mm / MM ) |
Ø250-290 |
| Mud density ( gr/cm³ / rp/cm³ ) |
1.15 |
| Cut point * ( D50 µm ) |
40 ( * ) |
| Sand content befote treatment ( % ) |
8÷10 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm / MM ) |
4000x1420x2450 |
| Weight ( Kg / KR ) |
2200 |
* Variable upon mud density

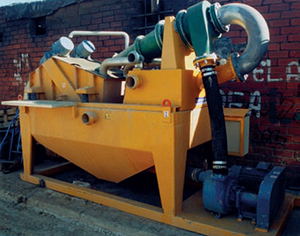

Karakteristiek:
| Model |
MD 160 |
| Capacity ( m³/h ) |
160 |
| Installed Power ( KW / V / Hz ) |
27 / 380 / 50 |
| Tank capacity ( m³ ) |
2.45 |
| Primary sieve ( mm ) |
740x1600xØ2÷4 |
| Secundary sieve ( mm ) |
740x1200x0.3÷0.8 |
| Hydrocyclon ( mm / MM ) |
Ø350-400 |
| Mud density ( gr/cm³ / rp/cm³ ) |
1.15 |
| Cut point * ( D50 µm ) |
40 ( * ) |
| Sand content befote treatment ( % ) |
8÷10 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm ) |
4220x1260x2500 |
| Weight ( Kg ) |
2450 |
* Variable upon mud density
Karakteristiek:
| Model |
MD 250 |
| Capacity ( m³/h \ M³/4 ) |
240 |
| Installed Power ( KW / V / Hz ) |
41 / 380 / 50 |
| Tank capacity ( m³ / M³ ) |
3.10 |
| Primary sieve ( mm / MM ) |
880x2300xØ2÷4 |
| Secundary sieve ( mm / MM ) |
880x2100x0.3÷0.8 |
| Hydrocyclon ( mm / MM ) |
2 x Ø250-290 |
| Mud density ( gr/cm³ / rp/cm³ ) |
1.15 |
| Cut point * ( D50 µm ) |
40 ( * ) |
| Sand content befote treatment ( % ) |
8÷10 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm / MM ) |
4900x1980x2500 |
| Weight ( Kg / KR ) |
3500 |
* Variable upon mud density

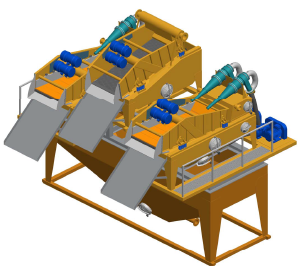

Karakteristiek:
| Model |
MD 500 |
| Capacity ( m³/h \ M³/4 ) |
480 |
| Installed Power ( KW / V / Hz ) |
67÷95 / 380 / 50 |
| Tank capacity ( m³ / M³ ) |
9 |
| Primary sieve ( mm / MM ) |
1200x2400x÷4 |
| Secundary sieve ( mm / MM ) |
2x(1200x2400X0.3÷0.8) |
| Hydrocyclon ( mm / MM ) |
4 x Ø250-290 |
| Mud density ( gr/cm³ / rp/cm³ ) |
1.3 |
| Cut point * ( D50 µm ) |
40 ( * ) |
| Sand content befote treatment ( % ) |
10÷30 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm / MM ) |
7000x5100x4000 |
| Weight ( Kg / KR ) |
12000 |
* Variable upon mud density

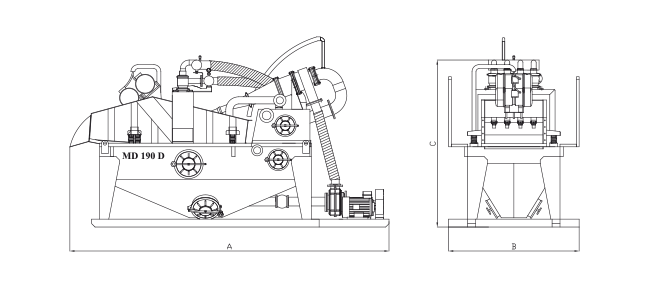

Karakteristiek:
| Model |
MD 190 D |
| Capacity ( m³/h ) |
120+100 |
| Capacity double cycloning ( m³/h ) |
100 |
| Installed power ( KW / V / Hz ) |
37.5/380/50 |
| Tank capacity ( m³ / M³ ) |
3.10 |
| Primary sieve ( mm / MM ) |
880x2300xØ2÷4 |
| Secundary sieve ( mm / MM ) |
880x2100x0.3÷0.8 |
| Hydrocyclons diameter ( mm / MM ) |
1 x Ø250-290
4 x Ø100-160
|
| Mud density ( gr/cm³ / rp/cm³ ) |
1.15 |
|
Combined cut point ( D50 µm )
Simple cycloning
Double cycloning
|
40(*)
30(*)
|
| Desilter cut point * ( D50 µm ) |
15(*) |
| Sand content befote treatment ( % ) |
8÷10 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm / MM ) |
4900x1980x2500 |
| Weight ( Kg / KR ) |
3600 |
* Variable upon mud density

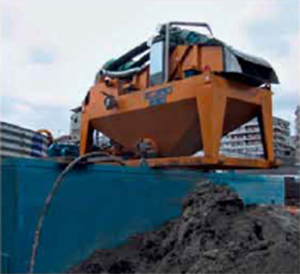

Karakteristiek:
| Model |
MD 220 D |
| Capacity ( m³/h ) |
160+100 |
| Capacity double cycloning ( m³/h ) |
100 |
| Installed power ( KW / V / Hz ) |
41/380/50 |
| Tank capacity ( m³ / M³ ) |
3.10 |
| Primary sieve ( mm / MM ) |
880x2300xØ2÷4 |
| Secundary sieve ( mm / MM ) |
880x2100x0.3÷0.8 |
| Hydrocyclons diameter ( mm / MM ) |
1 x Ø350-400
4 x Ø100-160
|
| Mud density ( gr/cm³ / rp/cm³ ) |
1.15 |
|
Combined cut point ( D50 µm )
Simple cycloning
Double cycloning
|
40(*)
30(*)
|
| Desilter cut point ( D50 µm ) |
15(*) |
| Sand content befote treatment ( % ) |
8÷10 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm / MM ) |
4900x1980x2500 |
| Weight ( Kg / KR ) |
3700 |
* Variable upon mud density
Karakteristiek:
| Model |
MD 190 D |
| Capacity ( m³/h ) |
240+120 |
| Capacity double cycloning ( m³/h ) |
120 |
| Installed power ( KW / V / Hz ) |
44/380/50 |
| Tank capacity ( m³ / M³ ) |
4.30 |
| Primary sieve ( mm / MM ) |
1200x2600xØ2÷4 |
| Secundary sieve ( mm / MM ) |
1200x2400x0.3÷0.8 |
| Hydrocyclons diameter ( mm / MM ) |
2 x Ø250-290
5 x Ø100-160
|
| Mud density ( gr/cm³ / rp/cm³ ) |
1.15 |
|
Combined cut point ( D50 µm )
Simple cycloning
Double cycloning
|
40(*)
30(*)
|
| Desilter cut point * ( D50 µm ) |
15(*) |
| Sand content befote treatment ( % ) |
8÷10 |
| Sand content alter treatment ( % ) |
<1.5 |
| Dimensions ( AxBxC - mm / MM ) |
5160x2200x2500 |
| Weight ( Kg / KR ) |
4400 |
* Variable upon mud density
