Menger en pompen CLIVIO
FOR CEMENT GROUT, COLLOIDAL GROUT AND CHEMICAL GROUT
The grouting set CLIVIO mod. 2PSE/E+TM130 E is designed to meet operational needs in small spaces...
The pump is combined with a small turbmixer, in order to obtain a complete unit for the mixing and the injection operation all electric or hydraulic driven.
The grout delivery rate can be adjusted directly by the electrical panel or, in the case of application in groups to hyraulic operation, can be controlled through a valve speed.
A safety velve discharge the pressure of the sustem in case of overpressure. The system is particularly suitable for geothermal applications or injections of micropiles and tie rods.
| WEIGHT AND DIMENSIONS | |
| Width (mm) | 1110 |
| Length (mm) | 800 |
| Height (mm) | 1650 |
| Weight (kg) | 320 |
| Equipment |
Delivery max litri/min. |
Pressure max bar |
Pistons n° |
Pistons Diameter mm |
Electric Motor kW |
| 2PS/E | 30 | 20 | 2 | 50 | 3 |
| Equipment |
Total Capacity litri |
Working Capacity litri |
Speed vertical shaft giri/min. |
Theoretical delivery pump lt/min. |
Theoretical pressure Pump bar |
Engine power kW |
| TM130 | 130 | 100 | 1500 | 300 | 2 | 3 |
(All data, illustrations and features are subject to change without notice or liability)

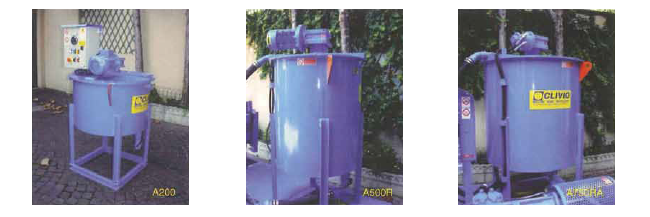

FOR CEMENT AND CHEMICAL MIXTURES GROUTING
The AGITATORS are made of single steel tank, width vertical shaft carrying blades, cover tank and discharge tap. The transmission is made by motor with electrical or pneumatic functioning. Usually the Clivio Agitators are assembled with our Clivio mixer TM and our pumps (injector) series AP - MP - DP.
| Modell |
Theorical capacity lt. |
Work capacity lt. |
Speed vertical shaft rpm |
Motor kW |
Length mm |
Width mm |
Height mm |
Weight kg |
| A200 | 220 | 200 | 60 | 1,1 | 900 | 900 | 1700 | 180 |
| A200A | 220 | 200 | 60 | Air 1,1 | 900 | 900 | 1600 | 150 |
| A500R | 500 | 450 | 63 | 2,2 | 1200 | 900 | 1850 | 320 |
| A500RA | 500 | 450 | 63 | Air 3,6 | 1000 | 900 | 1800 | 290 |
| A750R | 810 | 750 | 63 | 3 | 1400 | 1100 | 1850 | 340 |
| A750RA | 810 | 750 | 63 | Air 3,6 | 1200 | 1100 | 1800 | 310 |
| A1000 | 1130 | 1010 | 63 | 3 | 1500 | 1300 | 1850 | 420 |
| A1000A | 1130 | 1010 | 48 | Air 3,6 | 1300 | 1300 | 1800 | 390 |
| A2200 | 2400 | 2200 | 57 | 3 | 1515 | 1510 | 2250 | 680 |
(All data, illustrations and features are subject to change without notice or liability)
FOR CEMENT GROUT, CHEMICAL GROUT, OTHER MIXTURES - ELECTRIC DRIVEN
Grout Injection Unit CLIVIO model DP/4M + 5M is designed to particularly meet the problems of consolidation works, micropiling, anchor holes and every where valves piles fracture is concerned (tube a machete).
The unit is consisting of:
- grout injector pump CLIVIO model DP/OL-4 electro-hydraulic driven
- Double a tank mixer CLIVIO model 5M electric-driven
The whole is mounted on a steel frame including the electric panel with pump control switches HP/LP (high/low pressure) and on/off electric motors.
Lifting points have been placed for a pompt and safe site setting.
CLIVIO supply a complete ine of machines for THE WHOLE GROUTING WORK: drill units, grout pumps, high speed mixers and all accessories.
| Machine |
Theor. Capacity each tank Litre |
Work capacity each tank litre |
Shaft rpm |
Electric motor kW |
|
| 5M | 220 | 200 | 96 | 2 | |
| Machine |
Delivery max Lt/min. |
Pressure max bar |
Delivery R.G. max Lt/min. |
Delivery R.G. max bar |
|
| DP/OL-4 | 30 | 45 | 3 | ||
|
DP/OL-4 RGM AP/BP manual |
9 | 85 | 30 | 45 | 3 |
|
DP/OL-4 RGA AP/BP automatic |
9 | 85 | 30 | 45 | 3 |
| Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
| 1600 | 1300 | 1700 | 470 |
(All data, illustrations and features are subject to change without notice or liability)
FOR GROUT INJECTION AND SPECIAL MIXTURES
DP/OL-4 is an vertical grouting pump which is designed to suit modular assembling.
Light weight, compact, esay to handle both in restricted area than in sites difficult to reach. It makes esay also severe working problems.
Our grout injection pump DP/OL-4 is consisting of a cylinder with a double acting piston, and overlapped ball valves. It is electro-hydraulic driven, equipped with a pressure and flow governor for a better use. All hydraulic working parts are easily accessible for easy maintenance. As pump is made by only few pieces the maintenance is extremely easy and at low cost.
Our grouting pump mo. DP/OL-4 can work for minipiles injections, tunnel liner grouting, rock anchor grouting, void filling etc...
The DP/OL-4 RG is equipped with a special distributor and can work for manchettes grouting and cracking. In this case a double pair of values are preset: max delivery at low pressure (LP) and max pressure (HP) at low delivery (for cracking).
The distributor is hand operated or automatic operated through magnetic valave equipped also with strokes and cycles recorder in its own board which is installed on the desk.
Grouting pumps DP/OL-4 and DP/OL-4 RG use also assembled in more units in a container with one feeder tank only and an injection line each pump.
| TECHNICAL DATA | DP/OL - 4 | DP/OL - 4 RG | DP/OL - 4 RG VP | |
| Grout diameter piston | mm | 85 | 85 | 85 |
| Piston run | mm | 120 | 120 | 120 |
| Max strokes | Strokes p.m. | 79 | 85 | 116 |
| Grout pressure (BP) | bar | 0 - 44 | 0 - 40 | 0 - 50 |
| Grout delivery (BP) | litre p.m. | 0 - 27 | 0 - 30 | 0 - 40 |
| Break pressure pipe (AP) | bar | ... | 85 | 85 |
| Break delivery pipe | litre p.m. | ... | 9 | 9 |
| Grout inlet | gas | 1"1/2 | 1"1/2 | 1"1/2 |
| Grout outlet | gas | 3/4" | 3/4" | 3/4" |
| Power | kW | 3 | 3 | 4 |
| Length | mm | 750 | 750 | 750 |
| Width | mm | 500 | 500 | 500 |
| Height | mm | 1600 | 1600 | 1600 |
| Weight | kg | 180 | 190 | 190 |
(All data, illustrations and features are subject to change without notice or liability)
FOR CEMENT GROUT, CHEMICAL GROUT, OTHER MIXTURES
Grout injection units CLIVIO mod. MP/A-2-MA200A have been designed to meet the technical requirements of the customer and are configured to satisfy the specific operational requirements.
Grouting units MP/A-2-MA200A consist of:
- M200A -Mixer CLIVIO air driven
- A200A - Agitator CLIVIO air driven
- MP/A-2 - Pump (injector) CLIVIO air driven.
All machines of the grout injection unit are arranged in a functional way on a single base frame (on request with 4 jack, rubber wheels and parking brake) and centralized control panel to be ready for use.
Particularly suitable in those sites where the compressed air is available at low cost. The use of a group so compact and light greatly reduces the installation time on site and requires minimal maintenance.
CLIVIO supply a complete line of machines for THE WHOLE GROUTING WORK: dill units, grout pumps, high speed mixers and all accessories.
| Model |
Total capacity Litres |
Work capacity Litres |
Shaft speed rpm |
Air driven kW |
| M200A | 220 | 200 | 130 | 1,1 |
| A200A | 220 | 200 | 130 | 1,1 |
| Model |
Piston diameter mm |
Maximum delivery l/min |
Maximum pressure Bar |
Maximum flow and pressure values cannot be reached simultaneously |
| MP/A-2 | 50 / 60 / 70 / 80 | 28 / 41 / 55 / 72 | 60 / 42 / 31 / 23 | |
|
Lenght mm |
Width mm |
Height mm |
Weight kg |
Air consumption at 7 bar L/min. |
| 1900 | 1420 | 1500 | 670 | 4350 |
(All data, illustrations and features are subject to change without notice or liability)
FOR CEMENT GROUT, CHEMICAL GROUT, OTHER MIXTURES - AIR DRIVEN
Grout injection unit CLIVIO mod. PS/A-MA140A is air driven and is designed to particularly meet consolidation works in restricted areas where electrical current is not available and where small grouting and low pressure works are required (restauration works, micro pile, foundation, consolidation etc.).
Grout injection unit PS/A-MA140A is composed of:
- M140/A - Mixer CLIVIO air driven
- A140/A - Agitator CLIVIO air driven
- PS/A - Pump (injector) CLIVIO air driven
All moving parts duly protected with steel welded. All machines of the grout injection unit are arranged in a functional way on a single base frame (on request with 4 jack, rubber wheels and parking brake) and centralized control panel to be ready for use.
Particularly suitable in those sites where the compressed air is available at low cost. The use of a group so compact and light greatly reduces the installation time on site and requires minimal maintenance.
| Model |
Total capacity Litres |
Work capacity Litres |
Shaft speed rpm |
Air driven kW |
| M140A | 140 | 120 | 130 | 1,1 |
| A140A | 140 | 120 | 130 | 1,1 |
| Model |
Piston diameter mm |
Maximum delivery l/min |
Maximum pressure Bar |
Maximum flow and pressure values cannot be reached simultaneously |
| PSA | 50 | 15 | 24 | |
|
Lenght mm |
Width mm |
Height mm |
Weight kg |
Air consumption at 7 bar L/min. |
| 1550 | 950 | 1250 | 240 | 3000 |
(All data, illustrations and features are subject to change without notice or liability)
FOR CEMENT GROUT, CHEMICAL GROUT, OTHER MIXTURES
Is designed to meet particularly the problems of consolidation works, micro piling, anchor hole and where valves pipes fracture system is concerned (HP-LP). All machines are properly placed on a single iron welded base for easy operation and prompt site setting.
Grouting unit T.A.D. 40 consists of:
- High-speed mixer mod. TM 260, capacity tank 200 litres - 7,3 kW electric motor
- Agitator mod. A 500, capacity tank 450 litres - 2,2 kW electric motor
- Grouting pump mod. DPOL4 RGM electro-hydraulic, delivery BP 40 litres min.
- pressure 40 bar max, delivery HP 9 litres min. - pressure 85 bar max, 3 kW electric motor.
CLIVIO supply a complete line of machines for THE WHOLE GROUTING WORK: dill units, grout pumps, high speed mixers and all accessories.
| Machine |
Total capacity Litre |
Work capacity Litre |
rpm/min. |
Electric motor kW |
| TM260 | 240 | 200 | 1450 | 7,5 |
| A500 | 500 | 450 | 97 | 2,2 |
| Machine |
Max delivery litre/min |
Max pressure bar |
Electric motor kW | ||
| AP | BP | AP | BP | ||
| DP/OL-4 RGM | 9 | 40 | 85 | 40 | 3 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) | Maximum flow and pressure values cannot be reached simultaneously |
| 3100 | 1130 | 1750 | 930 |
(All data, illustrations and features are subject to change without notice or liability)

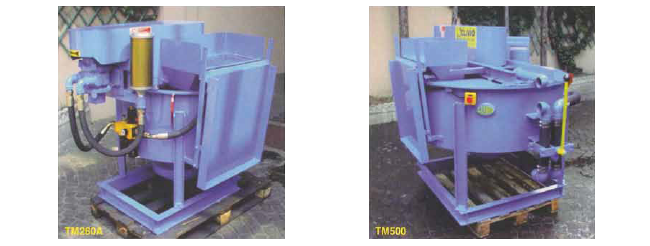

HIGHSPEED MIXERS FOR CEMENT GROUT, COLLOIDAL GROUT, BENTONITE, OTHER MIXTURES
High-speed mixer CLIVIO "TM" in particularly designed to produce colloidal grout. The high shear action of our special centrifugal pump and the high grout vortex caused inside the tank produce a colloidal grout. Our high-speed mixers TM may produce various types of cement grouts and chemical grouts. They are also working on jet grouting plant. Robust design and reliability are the main features of our high-speed mixers TM. Normally prime power mover is electric, on request pneumatic or hydraulic. On request we manufactre complete grouting units on a single steel base. Acessories: charging plate with hopper and water metering gauge.
| Model |
Theorical capacity lt |
Work capacity lt |
Speed vertical shaft rpm |
Theorical delivery pump bar |
Theorical pressure pump bar
|
Engine power kW |
Air consumption at 1500 rpm and 7 bar N litre |
| TM260 | 260 | 200 | 1500 | 600 | 2,5 | 7,5 | |
| TM260A | 5,5 | 6000 | |||||
| TM500 | 610 | 500 | 1500 | 600 | 2,5 | 7,5 | |
| TM500A | 5,5 | 6000 |
| Model | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |  |
| TM260 | 1530 | 970 | 1350 | 335 | |
| TM260A | 1530 | 305 | |||
| TM500 | 2010 | 1450 | 1350 | 420 | |
| TM500A | 390 |
(All data, illustrations and features are subject to change without notice or liability)

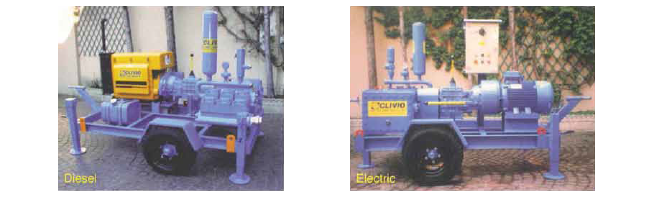

FOR WATER, CEMENT GROUT, BENTONITE AND SPECIAL MIXTURE
TRIPLEX Pumps CLIVIO mo. T 100 - T 200 - T 300 - T 400 are plunging pistons with stuffing box and continuous pistons washing system, this CLIVIO pumps work with fluids of various densities and nature.
Rugged, dependable, simple ans practically no maintenance required.
Main features are: high strength steel gears and shafts, thick chromium plated steel plungers, special cast iron crankcase and pimping section, cap valves or ball valves, piston seals in synthétic material.
| Machine | Motor (kW) | rpm/min. | Gearbox |
Maximum delivery litre/min. |
Maximum working pressure bar |
Maximum pressure bar |
Weight kg |
| T300 diesel | 30 | 1500 | 1 | 82 | 50 | 60 | 2000 |
| 2 | 159 | 50 | 60 | ||||
| 3 | 309 | 40 | 50 | ||||
| T400 diesel | 30 | 1500 |
1 |
113 |
50 |
60 |
2100 |
|
2 |
220 |
50 |
55 |
||||
|
3 |
428 |
40 |
40 |
||||
| T300 electric |
30
|
1450 |
1 |
78 |
50 |
60 |
1800 |
|
2 |
153 |
50 |
60 |
||||
|
3 |
300 |
40 |
55 |
||||
| T400 electric |
30
|
1450 |
1 |
109 |
50 |
60 |
1900 |
|
2 |
212 |
50 |
55 |
||||
|
3 |
413 |
35 |
40 |
| Machine | Length (mm) | Width (mm) | Height (mm) |
| T300 e T400 diesel | 3050 | 1850 | 1900 |
| T300 e T400 electric | 3050 | 1850 | 1900 |
(All data, illustrations and features are subject to change without notice or liability)

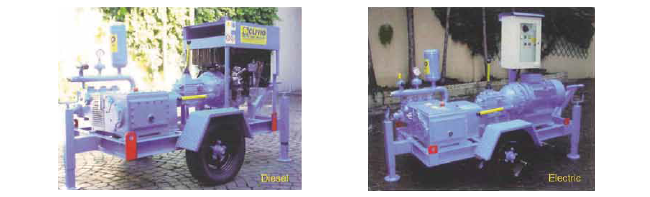

FOR WATER, CEMENT GROUT, BENTONITE AND SPECIAL MIXTURE
TRIPLEX Pumps CLIVIO mo. T 100 - T 200 - T 300 - T 400 are plunging pistons with stuffing box and continuous pistons washing system, this CLIVIO pumps work with fluids of various densities and nature.
Rugged, dependable, simple ans practically no maintenance required.
Main features are: high strength steel gears and shafts, thick chromium plated steel plungers, special cast iron crankcase and pimping section, cap valves or ball valves, piston seals in synthétic material.
| Machine | rpm/min. | Gearbox |
Maximum delivery litre/min. |
Maximum working pressure bar |
Maximum pressure bar |
|
Diesek LOMBARDINI LDW 1603 |
2300 | 1° | 70 | 50 | 60 |
| 2° | 123 | 50 | 55 | ||
| 3° | 226 | 45 | 50 | ||
|
Electric motor 18,5 kW |
1450 | 1° | 66 | 60 | 65 |
| 2° | 122 | 50 | 60 | ||
| 3° | 225 | 45 | 50 |
| Machine | Length (mm) | Width (mm) | Height (mm) | Weight approx (kg) |
| T202 diesel | 2800 | 1450 | 1350 | 1070 |
| T202 electric | 2800 | 1450 | 1650 | 900 |
(All data, illustrations and features are subject to change without notice or liability)
