Hydraulische afsluiter enkel en dubbel
Caractéristiques:
| Inner diam. inch / mm |
Outer diam. mm |
Max. W.P bar |
Weight Kg/m |
Order Number |
| 3/8" - 9.5 |
17.4 |
155 |
0.32 |
GH9 |
| 1/2" - 12.7 |
20.6 |
140 |
0.42 |
GH12 |
| 3/4" - 19.0 |
27.7 |
86 |
0.65 |
GH19 |
| 1" - 25.4 |
35.6 |
70 |
0.99 |
GH25 |
Our injection hoses are made of synthetic rubber reinforced with one steellayer. They are supplied with swaged "JIC" coupling and BSP adapters.
Standard lengths: 25 et 50 m
 |

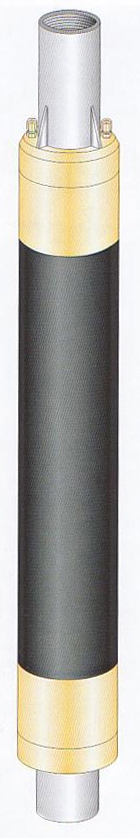

Complementary to the Bimbar standard packers range (Ø28 to Ø170mm) Geopro is offering to the users a packer of 275 mm (10 "3/4) diameter.
This packer is designed for large diameter wells up to 450mm (18"). It is available in single or double confIguration with an external inflation line in the straddle part.
The central pipe in the standard version has an inner bore of 102mm (4") and a top connection of NPT 4".
Upon request other central tube can be supplied up to 6" diameter with API, DCDMA or BSP thread connection.
|
